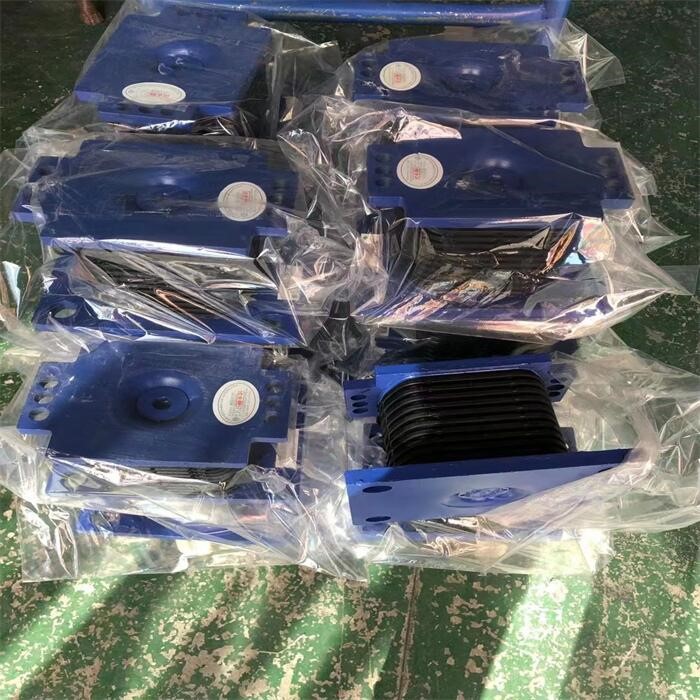

Truck Rubber Mount

Product introduction:

The rubber bearing refers to the supporting part used to support the weight of the container or equipment and fix it in a certain position, and also bear the vibration and earthquake load during operation.

The plate rubber bearing is a bridge bearing product formed by inlaying, bonding and vulcanizing multiple layers of natural rubber and at least two layers of thin steel plates of the same thickness.

Conservation:

1) The plate rubber bearing should be regularly maintained and repaired and inspected. Once a problem is found, it should be repaired or replaced in time.

2), plate rubber bearings and PTFE slide rubber bearings should check the following:

a: Whether there is slippage and void phenomenon in the support;

b: Whether the shear displacement of the support is too large (the shear angle should not be greater than 35°);

c: Whether the support has excessive compression deformation; (the maximum compression deformation shall not exceed 0.07te, te is the total thickness of the rubber layer of the support)

d: Whether there are cracks, hardening and other aging phenomena in the rubber protective layer of the support, and record the crack position, crack width and length;

e: Whether the convexity of the rubber plate between the stiffened steel plates of each layer of the support is uniform and normal;

f: For the PTFE slide rubber support, check whether the PTFE slide plate on the support is intact, whether there is any peeling phenomenon, whether the support has slipped out of the stainless steel plate on the top surface of the support, whether the 5201-2 silicone grease is Apply and fill oil sump of PTFE slide rubber mounts.
