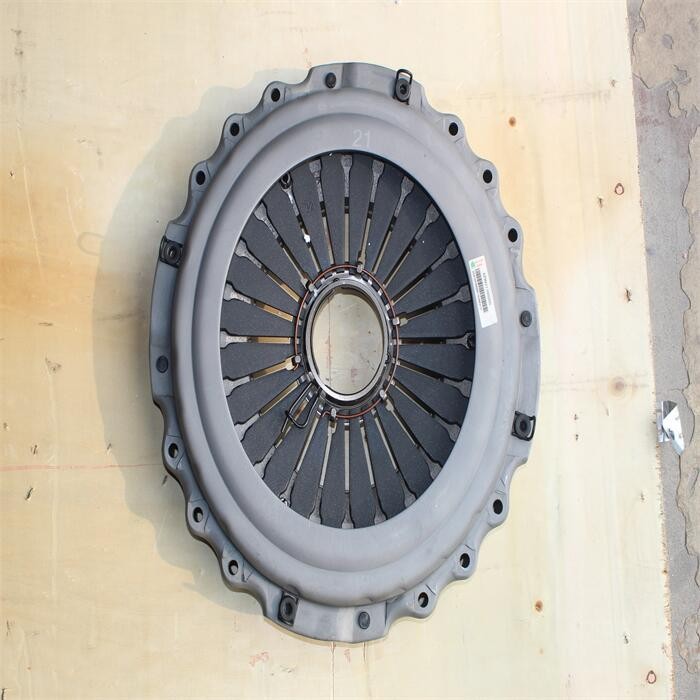

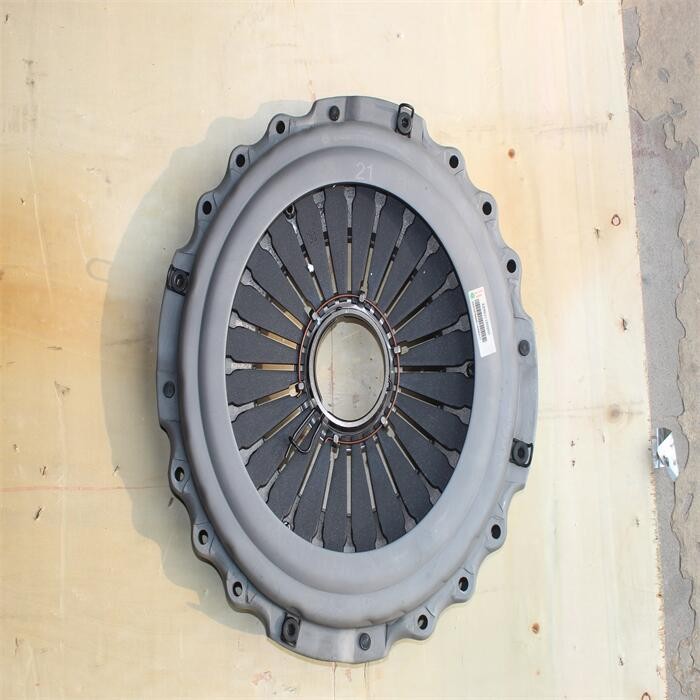

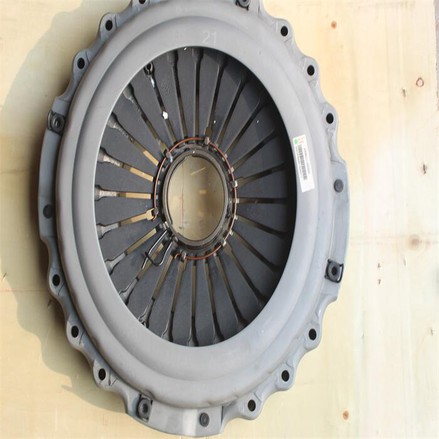

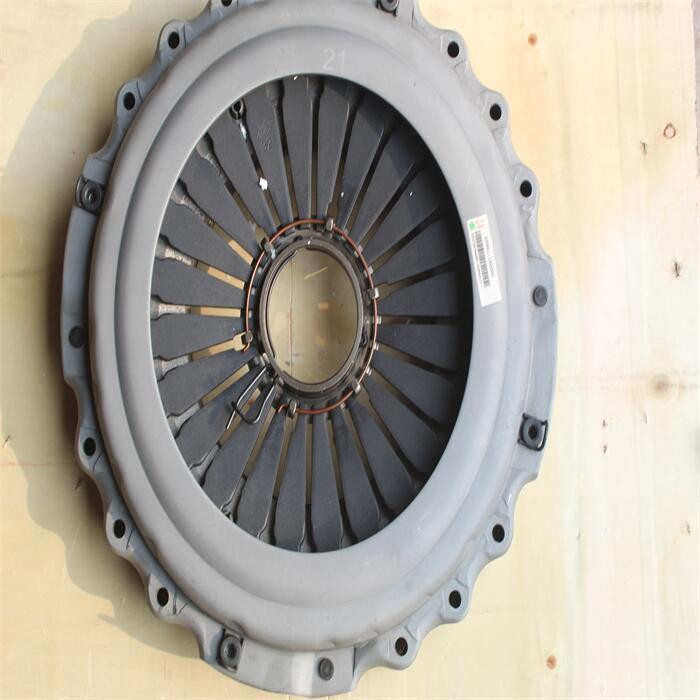

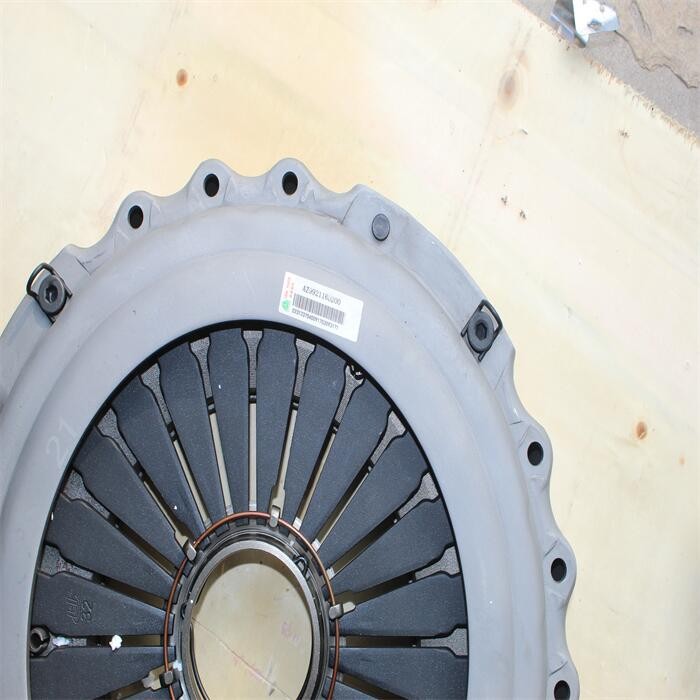

Clutch Pressure Plate



product name:	clutch pressure plate	Delivery time:	5 days	warranty period:	half a year
Package:	wooden box/carton	Shipping place:	Jinan City, Shandong Province	Shipping method:	Containers and Express
Minimum order quantity:	Starting from one piece	payment method:	Western Union Alipay  Paypal	Exterior:	Real pictures

Inspection method of clutch pressure plate:
1.Most of the damage to the pressure plate during maintenance is plane wear, scratches, cracks and warping deformation.
2.During the inspection of the clutch cover, if cracks, damage or deformation are found, the clutch cover or pressure plate assembly should be replaced.
3.Diaphragm spring maintenance: If the diaphragm spring has broken reeds, burns, cracks and other defects, it should be replaced in time.



The Role and Installation Method of Clutch Pressure Plate

As an essential part of a manual transmission system, the clutch pressure plate plays a crucial role in transmitting power between the engine and the transmission. But what is its actual function? And how should it be installed? In this article, we will delve into these questions to provide valuable insights into this important component.

1.Function

The clutch pressure plate is a circular, metal plate that is bolted to the flywheel of the engine. It provides the necessary force to press the clutch disc against the flywheel when the clutch pedal is released. The clutch disc is situated between the flywheel and the pressure plate and is held in place by friction. The pressure plate applies pressure to the clutch disc, allowing the engine's power to transfer through the transmission and propel the vehicle forward.

In short, the clutch pressure plate is responsible for disengaging and engaging the clutch system. When the clutch pedal is depressed, the pressure plate releases the clutch disc, allowing the driver to shift gears. When the clutch pedal is released, the pressure plate applies pressure once again, enabling the transmission to engage with the engine's power.

2.Installation Method

Installing a clutch pressure plate involves several critical steps that should be carefully followed to ensure proper function and maximum durability. Here is a step-by-step guide on how to install a clutch pressure plate:

Step 1: Remove the old clutch pressure plate and release bearing from the flywheel.
Step 2: Inspect the flywheel for any damage or deformation and replace it if necessary.
Step 3: Clean the surface of the flywheel to ensure a proper seal between the flywheel and the pressure plate.
Step 4: Install a new clutch disc on the flywheel.
Step 5: Align the clutch disc carefully with the flywheel.
Step 6: Install the new clutch pressure plate over the clutch disc. Make sure the pressure plate aligns correctly with the clutch disc.
Step 7: Place the pressure plate bolts in the corresponding holes on the flywheel. Use a torque wrench to tighten them in a criss-cross pattern to ensure even pressure distribution.
Step 8: Install a new release bearing. Lubricate it with high-temperature bearing grease.
Step 9: Attach the clutch linkage to the clutch pedal.
Step 10: Fill the clutch master cylinder with brake fluid and bleed the system if necessary.



The clutch pressure plate is a critical component that plays a vital role in the transmission system. Its proper function is essential to ensure a smooth and efficient transmission of power from the engine to the transmission. By understanding its role and following the installation process, you'll be able to ensure your clutch's longevity and optimal performance.



Clutch pressure plate model:

1000432873	1001477995	1001477998	1001596834	1106616100004	1106916100002
1106916100005	1120816100001	DZ9114160026	DZ9114160034	1106616100002	AZ9725160100
612600170053	AZ9921160200	AZ9921160220	BZ1560161090	DZ9114160015JJ	DZ9114160021
