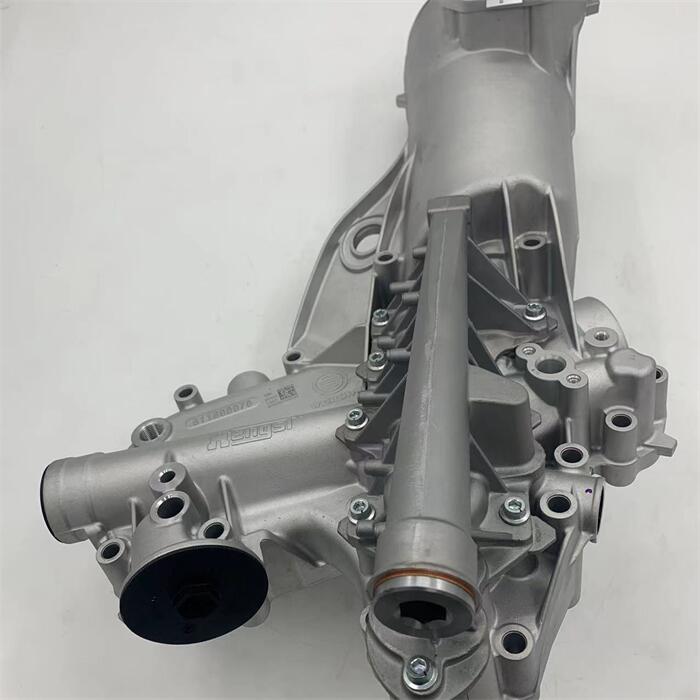

Oil Cooler Module

Oil filter module. Also known as the oil cooling filter assembly, according to its installation position on the engine, its components are also different. . Most oil filtration modules integrate box-type coolers, water pumps, filters, various pressure regulating valves, temperature control valves and other parts, which are organically combined through the cooler seat to achieve oil cooling and filtration , flow distribution, pressure regulation and other functions. . Modular products have compact structure, small size, high heat transfer efficiency and good reliability.

The oil cooler is a device that accelerates the heat dissipation of the lubricating oil to keep it at a lower temperature. On high-performance, high-power enhanced engines, due to the large heat load, an oil cooler must be installed. The oil cooler is arranged in the lubricating oil circuit, and its working principle is the same as that of the radiator.

Type:

air-cooled

Air-cooled oil cooler

The core of the air-cooled oil cooler is composed of many cooling pipes and cooling plates. When the car is running, the headwind of the car is used to cool the hot oil cooler core. The air-cooled oil cooler requires good ventilation around it, and it is difficult to ensure sufficient ventilation space in ordinary cars, so it is rarely used. This kind of cooler is mostly used in racing cars, because the racing speed is high and the cooling air volume is large

Water-cooled:

The oil cooler is placed in the cooling water circuit, and the temperature of the lubricating oil is controlled by the temperature of the cooling water. When the temperature of the lubricating oil is high, it is cooled by the cooling water. When the engine starts, it absorbs heat from the cooling water to increase the temperature of the lubricating oil rapidly. The oil cooler is composed of a shell made of aluminum alloy, a front cover, a rear cover and a copper core tube. In order to enhance cooling, heat sinks are installed outside the tube. Cooling water flows outside the tube, lubricating oil flows inside the tube, and the two exchange heat. There are also structures that allow oil to flow outside the pipe and water to flow inside the pipe.

Radiation cooler module: It is a device that can simultaneously cool multiple objects or some objects such as cooling water, lubricating oil, and compressed air. The cooling module adopts a highly integrated design idea, with full functions, small size, intelligent and efficient able features.
