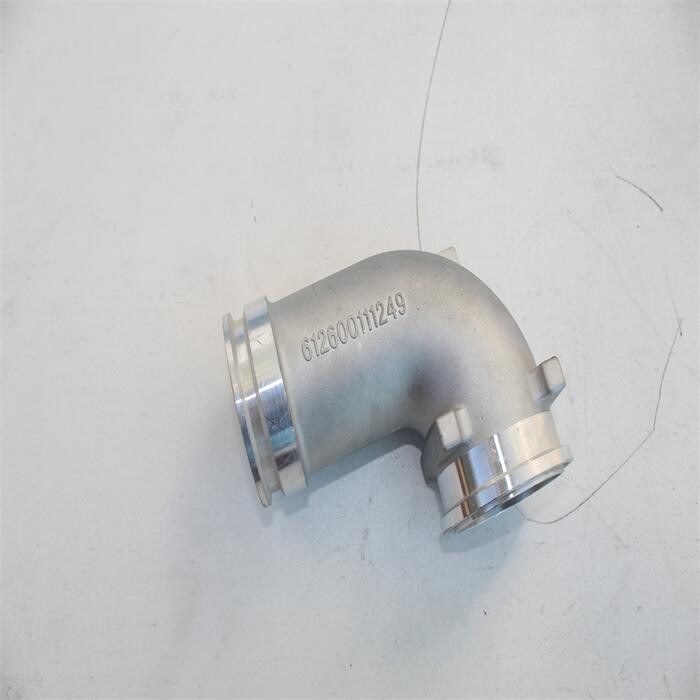

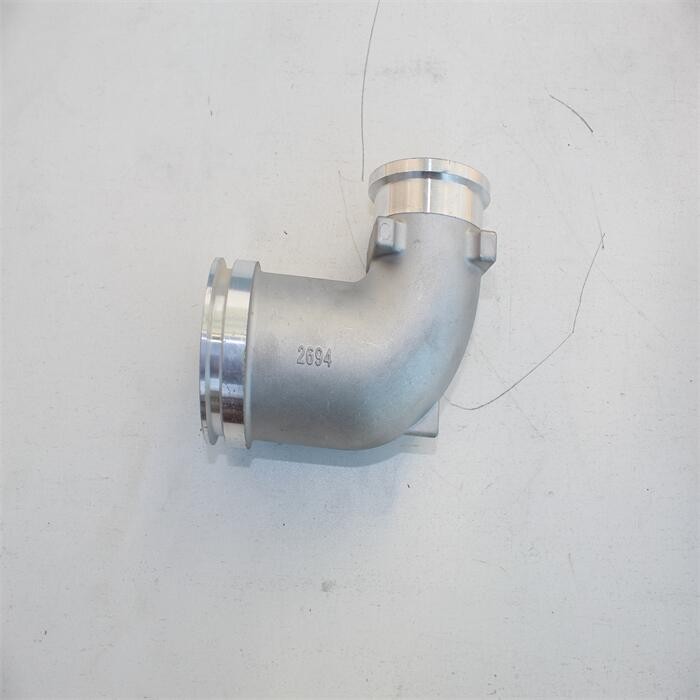

Supercharger Connection Elbow

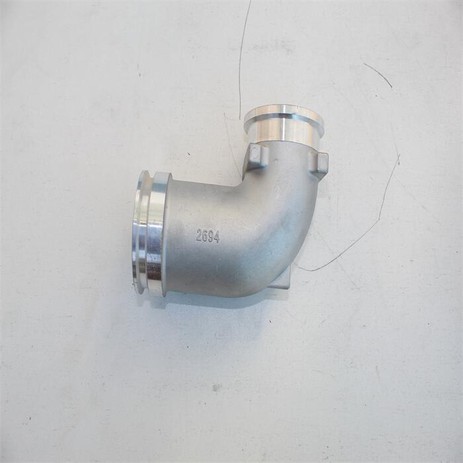

The disassembly and installation process for 612600111249 turbocharger connecting elbow on heavy-duty trucks are as follows:

1. Disassembly:

Step 1: Loosen the clamp that connects the turbocharger and the air inlet pipe, and then remove the air inlet pipe.

Step 2: Loosen the clamp that connects the turbocharger and the exhaust manifold, and then remove the exhaust manifold.

Step 3: Loosen the bolts that connect the turbocharger and the turbocharger bracket. Then, remove the turbocharger from the turbocharger bracket.

Step 4: Loosen the bolts that connect the turbocharger and the connecting elbow, and then remove the connecting elbow.

2. Installation:

Step 1: Install the connecting elbow onto the turbocharger and tighten the bolts to the specified torque.

Step 2: Install the turbocharger onto the turbocharger bracket and tighten the bolts to the specified torque.

Step 3: Install the exhaust manifold onto the turbocharger and tighten the clamp to the specified torque.

Step 4: Install the air inlet pipe onto the turbocharger and tighten the clamp to the specified torque.

Step 5: Start the engine and check for leaks. Make sure that the turbocharger is functioning properly.
